Cam Pin Rotation

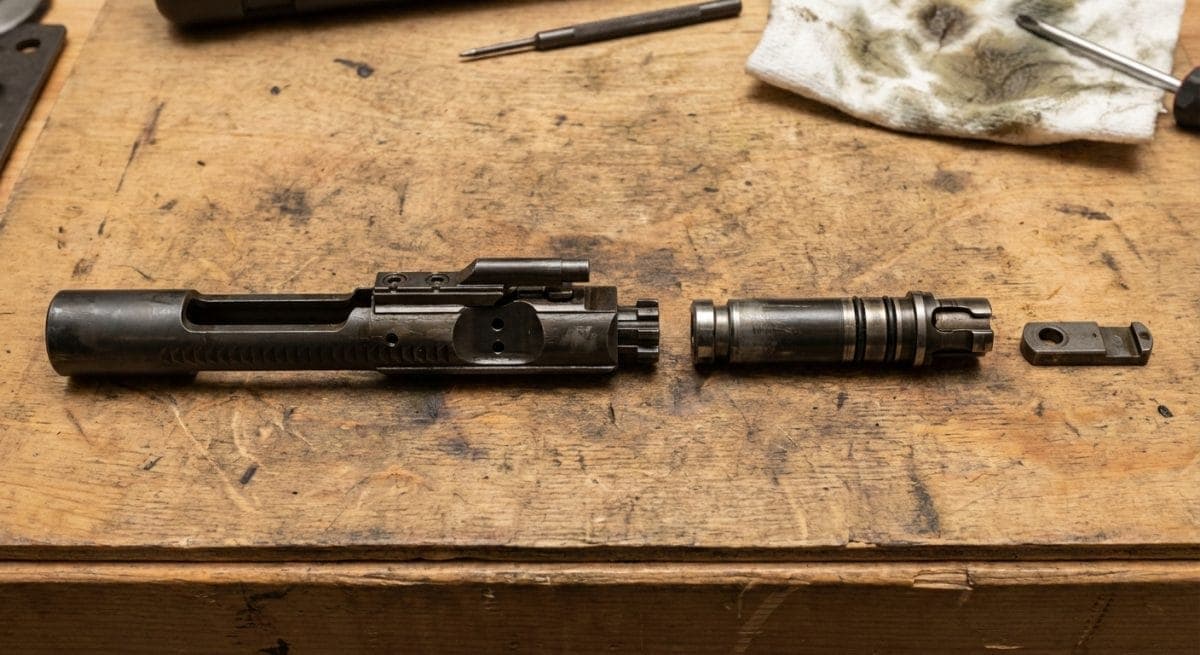

Cam pin rotation refers to the rotational movement of the cam pin inside the bolt carrier group (BCG) during the cycling of an AR-15. This small but critical component allows the bolt to rotate 15 degrees, enabling the locking and unlocking action between the bolt lugs and barrel extension.

How It Works

As the bolt carrier moves back during the firing cycle, the cam pin follows a helical slot in the carrier. This forces the bolt to rotate counterclockwise (when viewed from the rear), causing the bolt lugs to unlock from the barrel extension. During forward movement, the process reverses: the bolt rotates clockwise to lock into battery.

Why It Matters for Builders

Understanding cam pin rotation helps diagnose cycling issues. Common problems include:

• Excessive wear on the cam pin hole (typically visible after 10,000-15,000 rounds)
• Binding due to improper gas key alignment
• Failure to fully rotate, preventing proper lug engagement

Practical Building Tips

When assembling your BCG using the AR15 Outfitters builder, ensure the cam pin moves freely through its full range. The rectangular head should sit flush with the carrier when properly installed. Apply a drop of CLP to the cam pin before installation for smooth operation.

For enhanced durability, consider upgraded cam pins made from S7 tool steel or those with specialized coatings. These typically last 20,000-30,000 rounds versus 10,000-15,000 for standard pins. Remember: the cam pin works in conjunction with the firing pin and extractor as part of the complete BCG system, so regular inspection of all components ensures reliable firearm function.
