Gas Port Size

What is Gas Port Size?

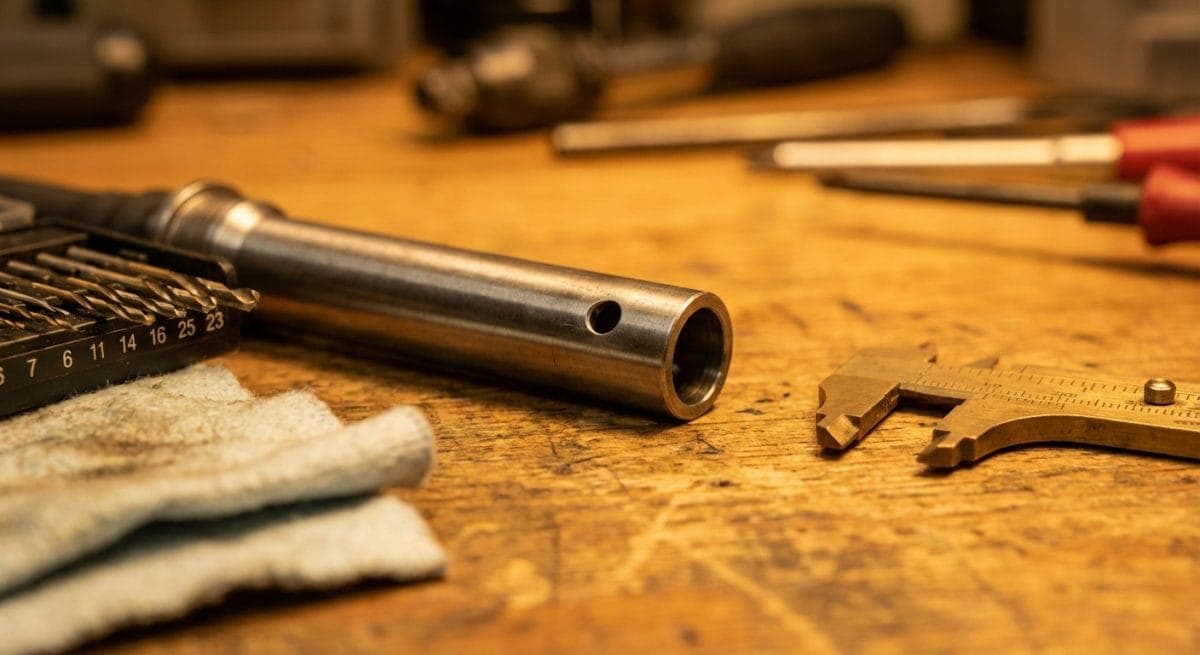

Gas port size refers to the diameter of the hole drilled through an AR-15 barrel that allows gas to flow from the bore into the gas block and gas tube. This small but critical opening typically measures between 0.063″ and 0.125″ depending on barrel length, gas system length, and manufacturer specifications.

The gas port acts as a metering valve for your AR-15 gas system. When you fire a round, expanding gases follow the bullet down the barrel. Once the bullet passes the gas port, a portion of these gases flows through the port into your gas block, then through the gas tube to drive the bolt carrier group rearward and cycle the action.

Why Gas Port Size Matters for AR-15 Builders

Proper gas port sizing directly affects:

• Reliability: Too small and your rifle short-strokes; too large and you get violent cycling
• Parts wear: Overgassed systems accelerate bolt carrier and buffer wear
• Recoil characteristics: Larger ports increase felt recoil and muzzle rise
• Ammunition compatibility: Different loads produce varying gas pressure

When selecting barrels in the AR15 Outfitters builder, pay attention to manufacturer gas port specifications. Quality manufacturers like Criterion and Daniel Defense typically provide optimal port sizing for their barrel and gas system combinations.

Practical Builder Tips

For 16″ barrels with mid-length gas systems, expect ports around 0.0785″ to 0.081″. Carbine length systems on 14.5″ or 16″ barrels generally run 0.063″ to 0.070″. If you’re experiencing cycling issues, verify port diameter with pin gauges before adjusting buffer weights or springs. Remember: you can always open up an undersized port, but you cannot make an oversized port smaller without professional intervention.
